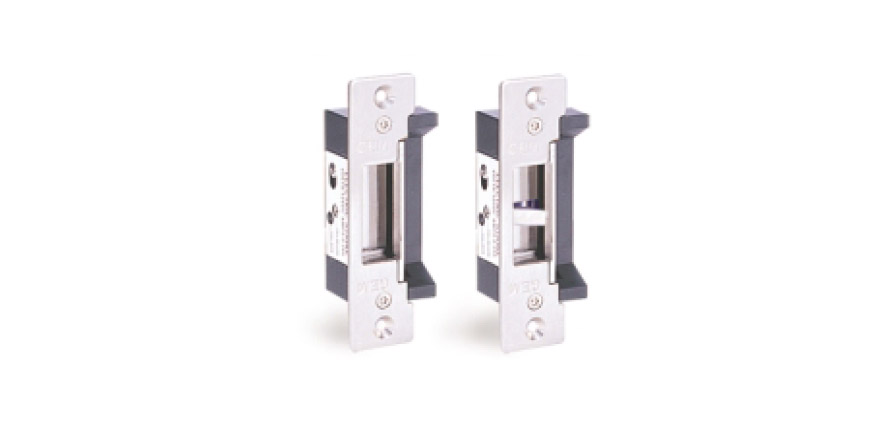

gk310
- Power Input: 12 V DC (24V DC available by special order)
- Voltage Tolerance: 15%
- Current Draw: 0.25 A@12 VDC; 0.15 A@24 VDC at temperature 20
- Sensor Switch monitored output (GK-310M), Rating 2A@
- 125V, indicates the lockset locked or unlocked status.
- Operating Temperature: -10~45
- Humidity: 0~95% non-condensing.
- Lock's surface Temperature (when the power is on): current temperature +20
- 2000 LBS jaw strength pull testing.
- Tested to 1,000,000 cycles.
- Weight Approx. : 400 g

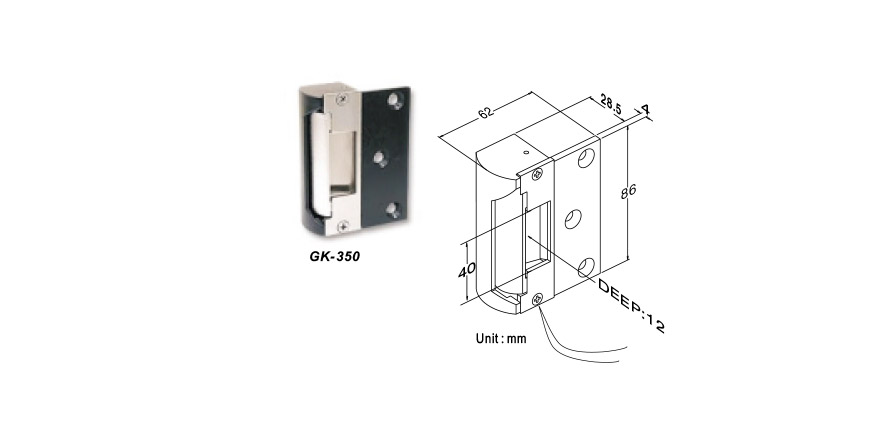

gk350
- Power Input: 12 V DC (24V DC available by special order)
- Voltage Tolerance: 15%
- Current Draw: 0.25 A@12 VDC; 0.15 A@24 VDC at temperature 20
- Operating Temperature: -10~45
- Humidity: 0~95% non-condensing.
- Lock's surface Temperature (when the power is on): current temperature +20
- 2000 LBS jaw strength pull testing.
- Tested to 1,000,000 cycles.
- Weight Approx. : 330 g
GK1900M
- Sliding Door Lock Strike with monitoring
- Easy installation 12/24VDC
- 700Lbs
GK-500-12
- Slimline Door Strike
- Fail-safe/Fail-secure
