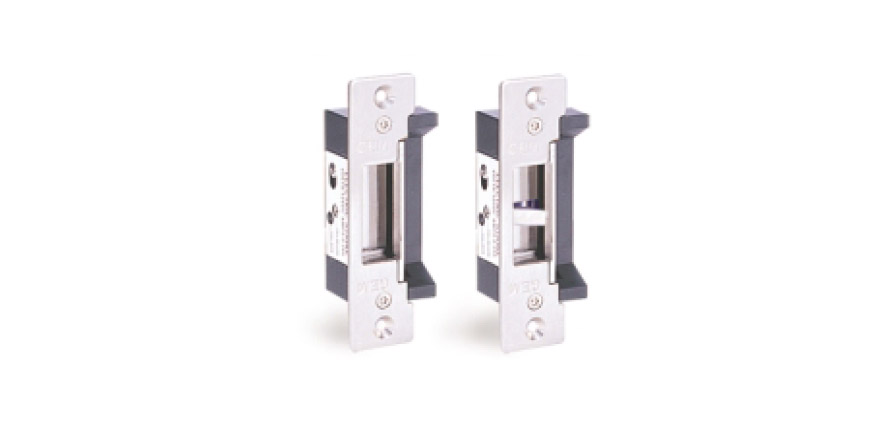

gk310

  • Power Input: 12 V DC (24V DC available by special order)
  • Voltage Tolerance: 15%
  • Current Draw: 0.25 A@12 VDC; 0.15 A@24 VDC at temperature 20
  • Sensor Switch monitored output (GK-310M), Rating 2A@
  • 125V, indicates the lockset locked or unlocked status.
  • Operating Temperature: -10~45
  • Humidity: 0~95% non-condensing.
  • Lock's surface Temperature (when the power is on): current temperature +20
  • 2000 LBS jaw strength pull testing.
  • Tested to 1,000,000 cycles.
  • Weight Approx. : 400 g

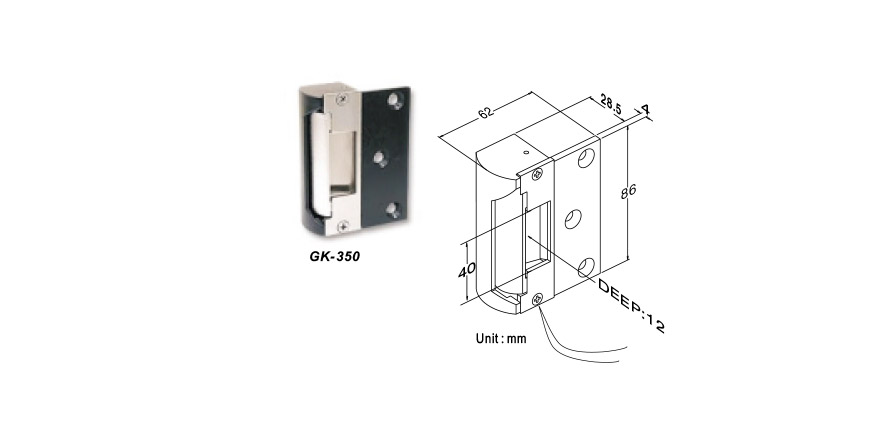

gk350

  • Power Input: 12 V DC (24V DC available by special order)
  • Voltage Tolerance: 15%
  • Current Draw: 0.25 A@12 VDC; 0.15 A@24 VDC at temperature 20
  • Operating Temperature: -10~45
  • Humidity: 0~95% non-condensing.
  • Lock's surface Temperature (when the power is on): current temperature +20
  • 2000 LBS jaw strength pull testing.
  • Tested to 1,000,000 cycles.
  • Weight Approx. : 330 g

GK-500-12

  • Slimline Door Strike
  • Fail-safe/Fail-secure
