Accessories

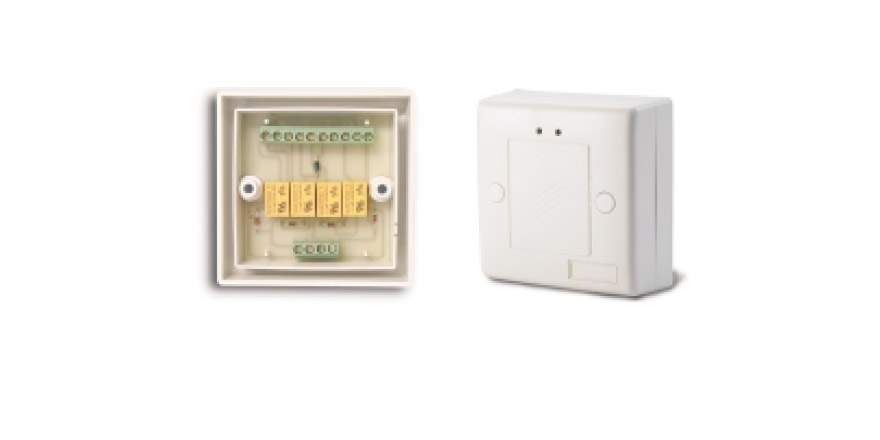

  • Power input: 12~24VDC
  • Relay rated: 3A/125VAC/30VDC
  • Dimensions: 73 (L)x 63 (W)mm
  • Operating Temper.: -20~+70ºC
  • Humidity: 0~95% non-condensign.

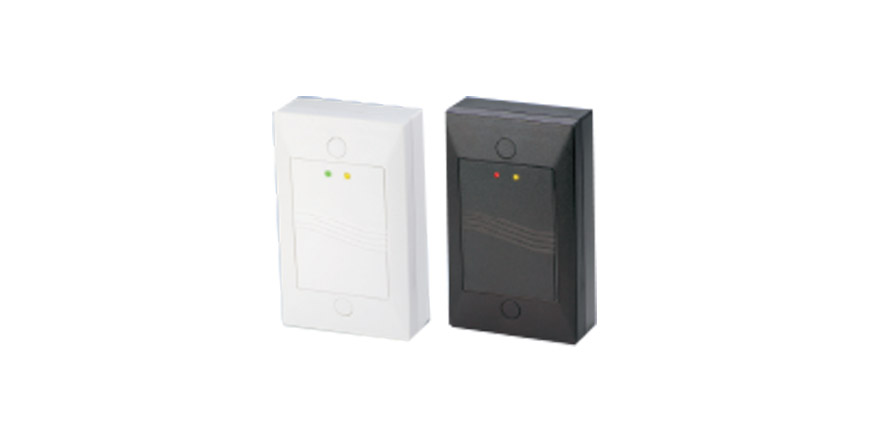

Easiprox ANSI Stand Alone Reader

  • Operating Voltage: 12 VAC/DC
  • Current Draw: Pull in: 70mA/12VDC ; Holding :45mA/12VDC
  • RF Frequency: EM 125KHz
  • Input: 1 contact for request-to-exit button
  • Relay rating: MAX . 3A/24VDC
  • Memory Volume: 2000 Proximity cards or tokens
  • Read Range: 10~15 cm (Depending on local installation
  • Conditions)
  • Relay Strike Time: 0.7~42 seconds
  • Visual Signals:
    • Yellow: Power on
    • Green: Add Tags
    • Red: Delete Tags
    • Yellow/Red: Clear Memory
    • Yellow (flash): strike mode and timer adjustment
    • Operating Temperature: -20ºC~70ºC
    • Ambient Humidity: 5~95% relative humidity (noncondensing)
    • Case Material: ABS (UL94V0)
    • Color: Black/ Beige White

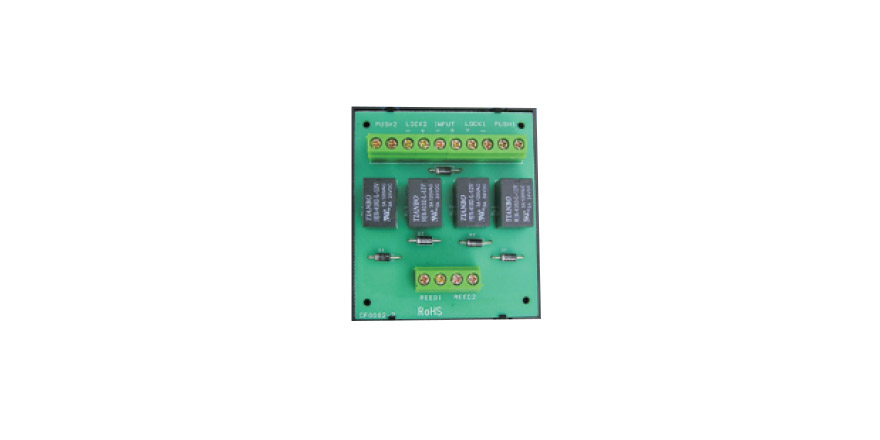

ILM-100 / Interlocking Relay Module

  • Case Size: 88(L)X88(W)X35(D) mm for Common Europe single-gang box sized
  • Relay rated 3A@125Vac, 24Vdc
  • 12~24 V DC power input, input equivalent to Output voltage.(Lock-1, Lock-2 contact output)
  • Operating Temper.:
  • Humidity: 0~95% non-condensing.

PBT020 Release

  • Faceplate: Stainless steel
  • Type of actuation: Momentary
  • Contact arrangement: single pole single throw
  • Max. Ratings : 3A/125V AC, 6A/24VDC
  • Contact resistance: 50 mΩ Max.(initial)
  • Operating life(Mechanical) : Over 100,000 times

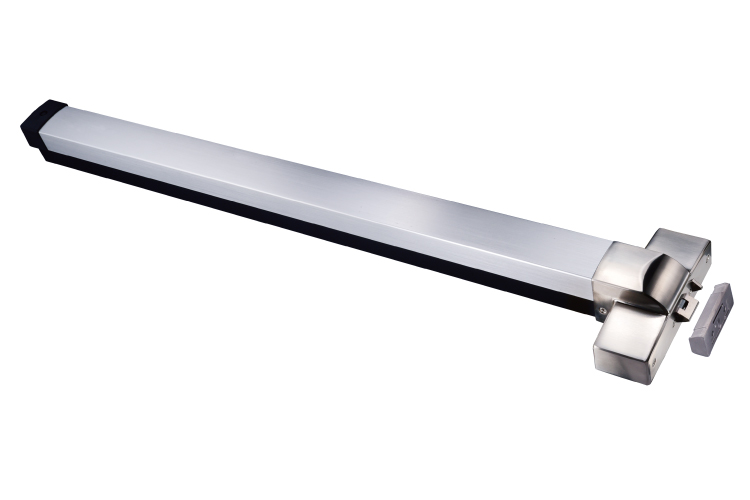

PBH350 Exit Push Bar

  • Egress Exit Push Bar, 680KG Static Strength
  • LED Indicator option (PBH350LED)
  • NO/NC/COM, 12/24VDC
  • 95db Sounder (PBH350DE)
  • Clear Anodized Finish and Easy Installation
  • 890x66x61.5mm

AD500 Automatic Door Opener

  • Easy Mount Automatic Door Opener
  • Optional Accessories available
  • Reversible on site Left/Right Handed Doors
  • Access Control System integration
  • 100-240VAC
  • CE/UL Approved

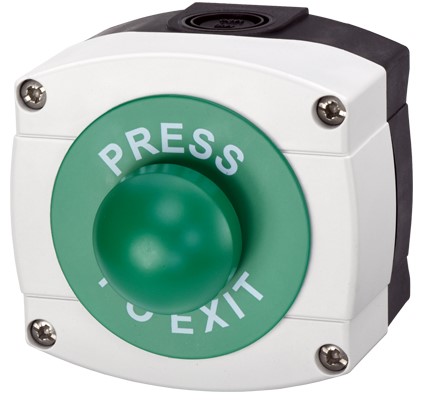

Weatherproof Exit Button

  • All weather and Extreme Environment Exit button
  • DPDT
  • NEMA 4X Rating

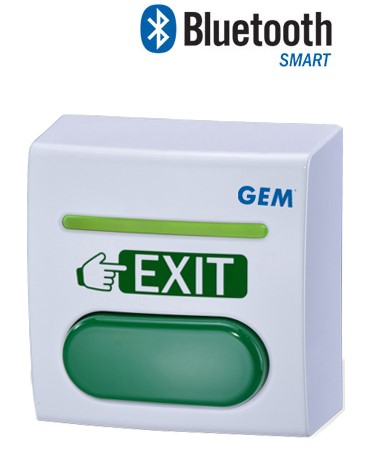

PBT1000BT Bluetooth Exit Button

  • Exit Button built-in Bluetooth upto 20m
  • iOS/Android App
  • Administrator Add or Delete Users
  • Audit trails
  • Scheduled Timing Access or periods

PPB Handicap or Exit Button

  • Illuminated Momentary SPDT Button
  • Interchangable lenses included (Handicap/Exit)
  • Stainless Steel Plate

MCS425

Exit Door Sensor
