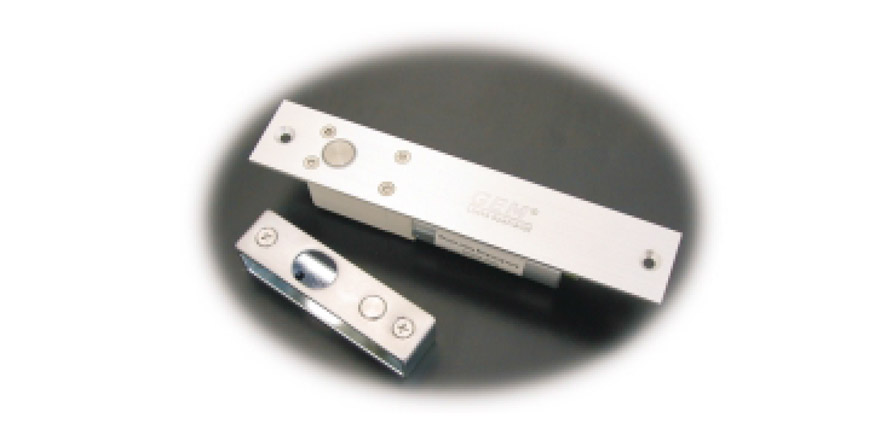

eb200n

  • Fail-Safe Version (Power to Lock)
  • Power Input: 12 V DC
  • Voltage Tolerance: 10%
  • Current Draw:
  • Pull in: 0.9A, Holding: 0.3A@12V DC at temperature 20
  • Door Position status output (Reed rated 0.25A@30VDC)
  • indicates door opened or closed status.
  • Operating Temperature: -10~+45
  • Humidity: 0~95% non-condensing.
  • Lock's surface Temperature (when the power is on): current temperature +20
  • Tested to 500000 cycles.
  • Autolock Time Delay : 0, 3 ,6 ,9seconds
  • Weight Approx. : 1.2 Kg

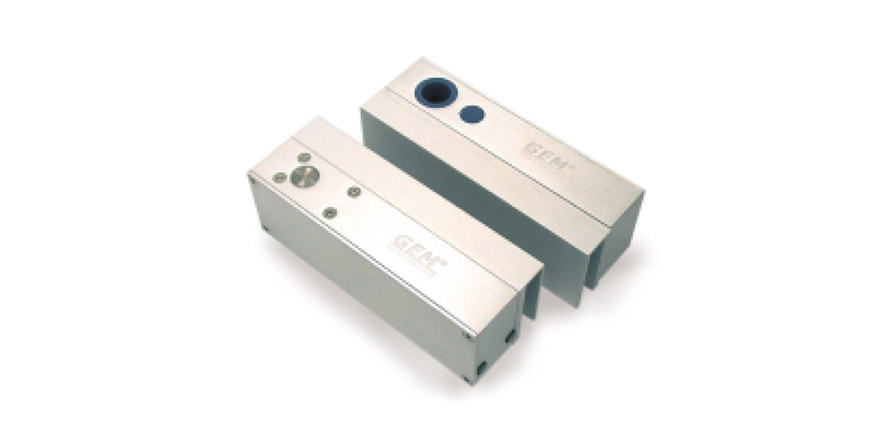

eb300vgl

  • Fail-Safe Version (Power to Lock)
  • Power Input: 12 V DC
  • Voltage Tolerance: 10%
  • Current Draw:
  • Pull in: 0.9A, Holding: 0.3A@12V DC at temperature 20
  • Door Position status output (Reed rated 0.25A@30VDC) indicates door opened or closed status.
  • Operating Temperature: -10~+45
  • Humidity: 0~95% non-condensing.
  • Lock's surface Temperature (when the power is on): current temperature +20
  • Tested to 500000 cycles.
  • Autolock Time Delay : 0, 3 ,6 ,9seconds
  • Weight Approx. :1.7 Kg

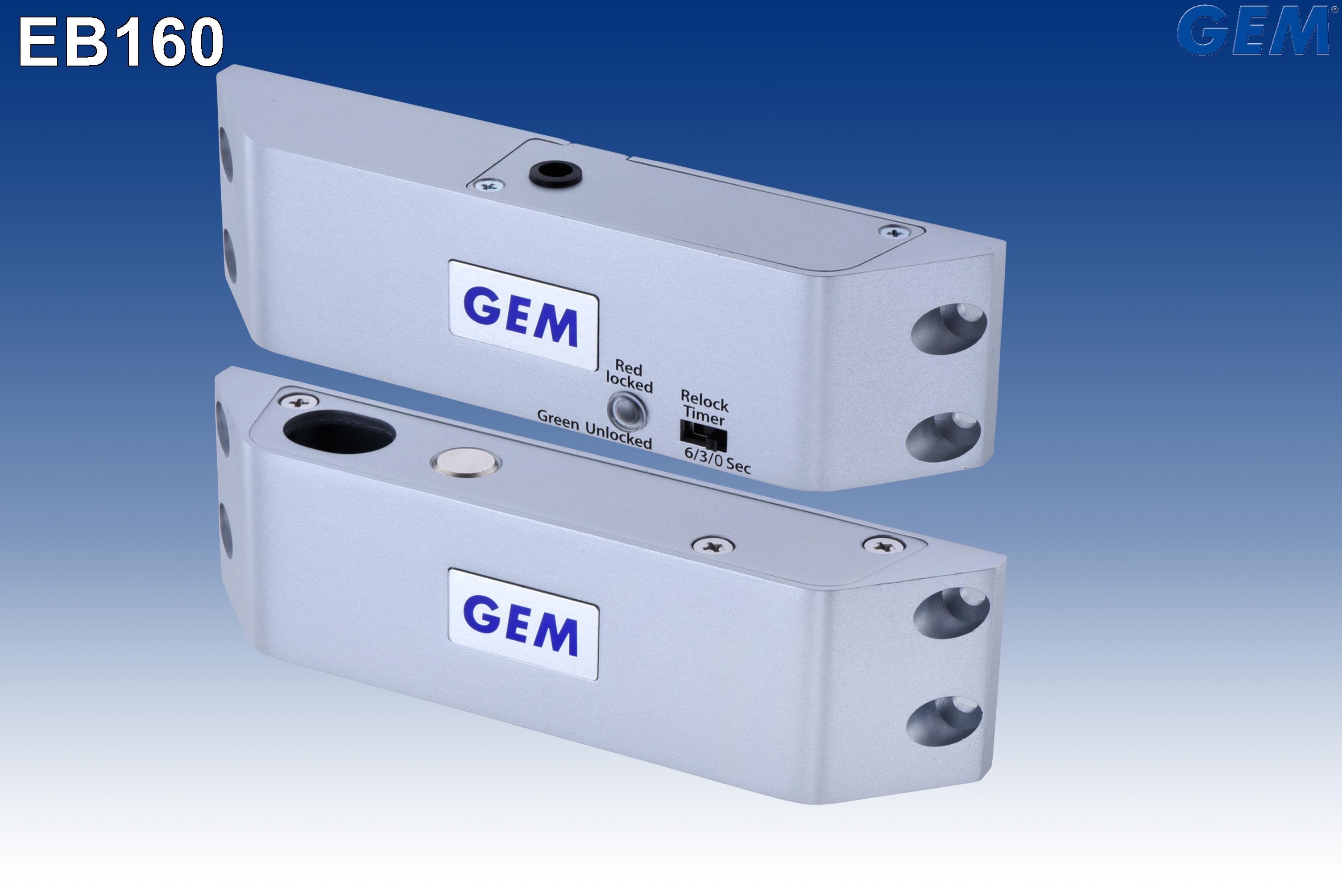

EB-160

  • Surface Mount Dropbolt
  • Easy to install with Frameless Glass Options
  • 0/3/6s adjustable relock timing with LED

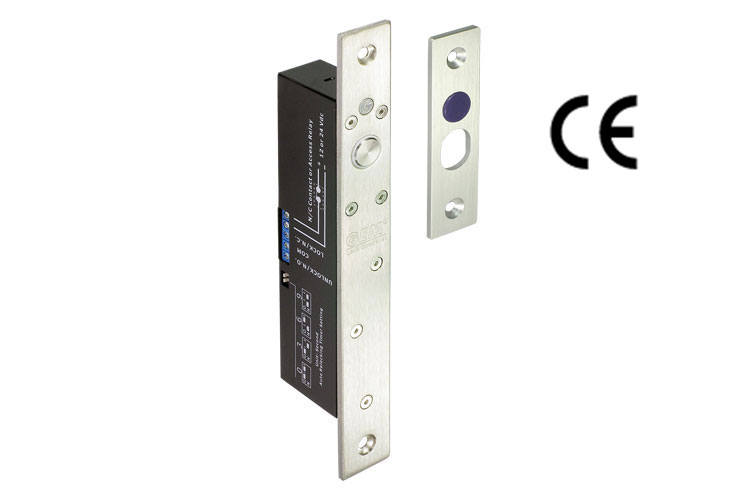

EB185 Slimline Dropbolt

  • 210x25x41mm
  • 12/24VDC selectable
  • Magnetic bolt status output
